Joining catalogs

In this tutorial, we will:

• demonstrate how to perform a JOIN on two catalogs

Note that this is different from a crossmatch, because the two catalogs share unique identifiers and we can match those values directly. This will still use the spatial properties to perform the JOIN on a per-partition basis.

Introduction

Gaia is a space telescope that provides excellent astrometric precision, and so is used for determining parallax distances to nearby stars. The parallax distances are not available in all data products, however.

In this notebook, we join Gaia with Gaia Early Data Release 3 (EDR3) and compute the ratio between the distances given by their parallax and r_med_geo columns, respectively.

import lsdb
from lsdb import ConeSearch

1. Load the catalogs

First we load Gaia with its objects source_id, their positions and parallax columns.

gaia = lsdb.open_catalog(
    "https://data.lsdb.io/hats/gaia_dr3",
    columns=["source_id", "ra", "dec", "parallax"],
    search_filter=ConeSearch(ra=0, dec=0, radius_arcsec=10 * 3600),
)
gaia

lsdb Catalog gaia:

	source_id	ra	dec	parallax
npartitions=4
Order: 2, Pixel: 67	int64[pyarrow]	double[pyarrow]	double[pyarrow]	double[pyarrow]
Order: 2, Pixel: 70	...	...	...	...
Order: 2, Pixel: 73	...	...	...	...
Order: 2, Pixel: 76	...	...	...	...

4 out of 152 available columns in the catalog have been loaded lazily, meaning no data has been read, only the catalog schema

We will do the same with Gaia EDR3 but the distance column we will use is called r_med_geo, the median of the geometric distance estimate.

gaia_edr3 = lsdb.open_catalog(
    "https://data.lsdb.io/hats/gaia_edr3_distances",
    columns=["source_id", "ra", "dec", "r_med_geo"],
    search_filter=ConeSearch(ra=0, dec=0, radius_arcsec=10 * 3600),
)
gaia_edr3

lsdb Catalog gaia_edr3_distances:

	source_id	ra	dec	r_med_geo
npartitions=4
Order: 2, Pixel: 67	int64[pyarrow]	double[pyarrow]	double[pyarrow]	double[pyarrow]
Order: 2, Pixel: 70	...	...	...	...
Order: 2, Pixel: 73	...	...	...	...
Order: 2, Pixel: 76	...	...	...	...

4 out of 13 available columns in the catalog have been loaded lazily, meaning no data has been read, only the catalog schema

2. Join Operation

We are now able to join both catalogs on the source_id column, as follows:

joined = gaia.join(gaia_edr3, left_on="source_id", right_on="source_id")
joined

/astro/users/olynn/lsdb/src/lsdb/catalog/catalog.py:840: FutureWarning: The default suffix behavior will change from applying suffixes to all columns to only applying suffixes to overlapping columns in a future release.To maintain the current behavior, explicitly set `suffix_method='all_columns'`. To change to the new behavior, set `suffix_method='overlapping_columns'`.
  warnings.warn(

lsdb Catalog gaia:

	source_id_gaia	ra_gaia	dec_gaia	parallax_gaia	source_id_gaia_edr3_distances	ra_gaia_edr3_distances	dec_gaia_edr3_distances	r_med_geo_gaia_edr3_distances
npartitions=4
Order: 2, Pixel: 67	int64[pyarrow]	double[pyarrow]	double[pyarrow]	double[pyarrow]	int64[pyarrow]	double[pyarrow]	double[pyarrow]	double[pyarrow]
Order: 2, Pixel: 70	...	...	...	...	...	...	...	...
Order: 2, Pixel: 73	...	...	...	...	...	...	...	...
Order: 2, Pixel: 76	...	...	...	...	...	...	...	...

8 out of 8 available columns in the catalog have been loaded lazily, meaning no data has been read, only the catalog schema

3. Joint analysis

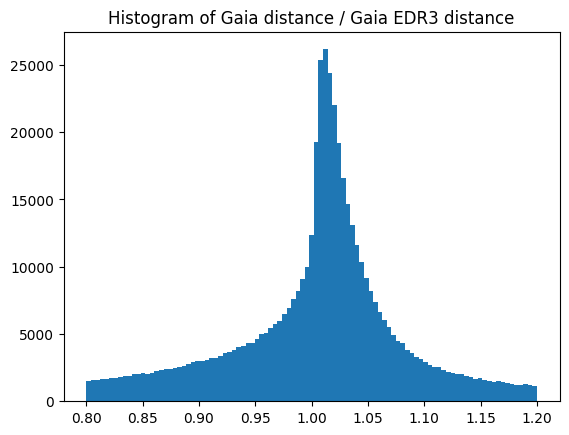

Let’s calculate a histogram with the ratio in catalog distances.

results = (1e3 / joined["parallax_gaia"]) / joined["r_med_geo_gaia_edr3_distances"]
ratios = results.compute().to_numpy()
ratios

array([  1.04369179,   0.99821673,   0.96884423, ...,   1.03218566,
       147.42381857,   1.41197562], shape=(825678,))

import numpy as np
import matplotlib.pyplot as plt

plt.hist(ratios, bins=np.linspace(0.8, 1.2, 100))
plt.title("Histogram of Gaia distance / Gaia EDR3 distance")
plt.show()
