Intro to Rubin Catalog Operations#
In this tutorial, we will:
explore the basics of column discovery
work with an individual lightcurve
apply common filtering operations
calculate basic aggregation statistics
Introduction#
This tutorial showcases a handful of basic LSDB operations that should be useful when working with Rubin (DP1) data. These operations are likely to be used regardless of science case, and the particular examples in this tutorial should allow you to understand how to use these operations in other ways. For example, while we filter by photometric band in one of the example below, that filter can easily be modified to filter by a quality flag in the data.
Loading Data#
The details of loading Rubin data are discussed in How to Access Data, so we’ll just provide a starter codeblock below:
[1]:
from upath import UPath
import lsdb
from lsdb import ConeSearch
base_path = UPath("/rubin/lsdb_data")
object_collection = lsdb.open_catalog(base_path / "object_collection")
# Cone search on ECDFS (Extended Chandra Deep Field South)
object_collection = lsdb.open_catalog(
base_path / "dia_object_collection",
search_filter=ConeSearch(ra=52.838, dec=-28.279, radius_arcsec=5000),
)
object_collection
[1]:
lsdb Catalog dia_object_lc:
| dec | diaObjectId | nDiaSources | ra | radecMjdTai | tract | diaObjectForcedSource | diaSource | |
|---|---|---|---|---|---|---|---|---|
| npartitions=42 | ||||||||
| Order: 10, Pixel: 9198847 | double[pyarrow] | int64[pyarrow] | int64[pyarrow] | double[pyarrow] | double[pyarrow] | int64[pyarrow] | nested<band: [string], coord_dec: [double], co... | nested<band: [string], centroid_flag: [bool], ... |
| Order: 6, Pixel: 35933 | ... | ... | ... | ... | ... | ... | ... | ... |
| ... | ... | ... | ... | ... | ... | ... | ... | ... |
| Order: 7, Pixel: 143825 | ... | ... | ... | ... | ... | ... | ... | ... |
| Order: 6, Pixel: 35957 | ... | ... | ... | ... | ... | ... | ... | ... |
8 out of 140 available columns in the catalog have been loaded lazily, meaning no data has been read, only the catalog schema
As mentioned beneath the catalog dataframe, the view above is a “lazy” view of the data. Often, it’s nice to preview the first few rows to better understand the contents of the dataset:
[2]:
object_collection.head(5)
[2]:
| dec | diaObjectId | nDiaSources | ra | radecMjdTai | tract | diaObjectForcedSource | diaSource | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2528559836917790087 | -28.694949 | 609787430777651220 | 1 | 53.446451 | 60632.084896 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528559862939733327 | -28.688946 | 609787430777651219 | 1 | 53.439723 | 60632.084896 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528559881657338699 | -28.688324 | 609787362058174465 | 1 | 53.459674 | 60632.084896 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528560064243227454 | -28.648182 | 609788117972418767 | 1 | 53.429821 | 60632.073989 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528606911361164817 | -28.630057 | 609788049252941917 | 1 | 53.505678 | 60632.084896 | 4849 |
|
|
Viewing Available Columns#
The schema browser provides the most information regarding available (DP1) columns, there is also a handful of properties useful for quick column discovery within the LSDB API. First, all_columns gives a view of all available columns in the HATS catalog, even if only a handful of columns were selected on load:
[3]:
object_collection.all_columns
[3]:
['ra',
'dec',
'nDiaSources',
'radecMjdTai',
'g_psfFluxLinearSlope',
'g_psfFluxLinearIntercept',
'g_psfFluxMAD',
'g_psfFluxMaxSlope',
'g_psfFluxErrMean',
'g_psfFluxMean',
'g_psfFluxMeanErr',
'g_psfFluxNdata',
'g_scienceFluxMean',
'g_scienceFluxMeanErr',
'g_psfFluxMin',
'g_psfFluxMax',
'g_psfFluxPercentile05',
'g_psfFluxPercentile25',
'g_psfFluxPercentile50',
'g_psfFluxPercentile75',
'g_psfFluxPercentile95',
'g_psfFluxSigma',
'g_scienceFluxSigma',
'g_psfFluxSkew',
'g_psfFluxChi2',
'g_psfFluxStetsonJ',
'r_psfFluxLinearSlope',
'r_psfFluxLinearIntercept',
'r_psfFluxMAD',
'r_psfFluxMaxSlope',
'r_psfFluxErrMean',
'r_psfFluxMean',
'r_psfFluxMeanErr',
'r_psfFluxNdata',
'r_scienceFluxMean',
'r_scienceFluxMeanErr',
'r_psfFluxMin',
'r_psfFluxMax',
'r_psfFluxPercentile05',
'r_psfFluxPercentile25',
'r_psfFluxPercentile50',
'r_psfFluxPercentile75',
'r_psfFluxPercentile95',
'r_psfFluxSigma',
'r_scienceFluxSigma',
'r_psfFluxSkew',
'r_psfFluxChi2',
'r_psfFluxStetsonJ',
'u_psfFluxLinearSlope',
'u_psfFluxLinearIntercept',
'u_psfFluxMAD',
'u_psfFluxMaxSlope',
'u_psfFluxErrMean',
'u_psfFluxMean',
'u_psfFluxMeanErr',
'u_psfFluxNdata',
'u_scienceFluxMean',
'u_scienceFluxMeanErr',
'u_psfFluxMin',
'u_psfFluxMax',
'u_psfFluxPercentile05',
'u_psfFluxPercentile25',
'u_psfFluxPercentile50',
'u_psfFluxPercentile75',
'u_psfFluxPercentile95',
'u_psfFluxSigma',
'u_scienceFluxSigma',
'u_psfFluxSkew',
'u_psfFluxChi2',
'u_psfFluxStetsonJ',
'i_psfFluxLinearSlope',
'i_psfFluxLinearIntercept',
'i_psfFluxMAD',
'i_psfFluxMaxSlope',
'i_psfFluxErrMean',
'i_psfFluxMean',
'i_psfFluxMeanErr',
'i_psfFluxNdata',
'i_scienceFluxMean',
'i_scienceFluxMeanErr',
'i_psfFluxMin',
'i_psfFluxMax',
'i_psfFluxPercentile05',
'i_psfFluxPercentile25',
'i_psfFluxPercentile50',
'i_psfFluxPercentile75',
'i_psfFluxPercentile95',
'i_psfFluxSigma',
'i_scienceFluxSigma',
'i_psfFluxSkew',
'i_psfFluxChi2',
'i_psfFluxStetsonJ',
'z_psfFluxLinearSlope',
'z_psfFluxLinearIntercept',
'z_psfFluxMAD',
'z_psfFluxMaxSlope',
'z_psfFluxErrMean',
'z_psfFluxMean',
'z_psfFluxMeanErr',
'z_psfFluxNdata',
'z_scienceFluxMean',
'z_scienceFluxMeanErr',
'z_psfFluxMin',
'z_psfFluxMax',
'z_psfFluxPercentile05',
'z_psfFluxPercentile25',
'z_psfFluxPercentile50',
'z_psfFluxPercentile75',
'z_psfFluxPercentile95',
'z_psfFluxSigma',
'z_scienceFluxSigma',
'z_psfFluxSkew',
'z_psfFluxChi2',
'z_psfFluxStetsonJ',
'y_psfFluxLinearSlope',
'y_psfFluxLinearIntercept',
'y_psfFluxMAD',
'y_psfFluxMaxSlope',
'y_psfFluxErrMean',
'y_psfFluxMean',
'y_psfFluxMeanErr',
'y_psfFluxNdata',
'y_scienceFluxMean',
'y_scienceFluxMeanErr',
'y_psfFluxMin',
'y_psfFluxMax',
'y_psfFluxPercentile05',
'y_psfFluxPercentile25',
'y_psfFluxPercentile50',
'y_psfFluxPercentile75',
'y_psfFluxPercentile95',
'y_psfFluxSigma',
'y_scienceFluxSigma',
'y_psfFluxSkew',
'y_psfFluxChi2',
'y_psfFluxStetsonJ',
'diaObjectId',
'tract',
'diaSource',
'diaObjectForcedSource']
Any nested columns (see Understanding the NestedFrame for an explanation on what these are) will have their own sets of sub-columns as well, we can first identify any nested columns programmatically using the nested_columns property:
[4]:
object_collection.nested_columns
[4]:
['diaObjectForcedSource', 'diaSource']
To view the available sub-columns, we use the nest accessor for one of the nested columns:
[5]:
object_collection["diaObjectForcedSource"].columns
[5]:
['band',
'coord_dec',
'coord_ra',
'diff_PixelFlags_nodataCenter',
'forcedSourceOnDiaObjectId',
'invalidPsfFlag',
'midpointMjdTai',
'pixelFlags_bad',
'pixelFlags_cr',
'pixelFlags_crCenter',
'pixelFlags_edge',
'pixelFlags_interpolated',
'pixelFlags_interpolatedCenter',
'pixelFlags_nodata',
'pixelFlags_saturated',
'pixelFlags_saturatedCenter',
'pixelFlags_suspect',
'pixelFlags_suspectCenter',
'psfDiffFlux',
'psfDiffFlux_flag',
'psfDiffFluxErr',
'psfFlux',
'psfFlux_flag',
'psfFluxErr',
'psfMag',
'psfMagErr',
'visit']

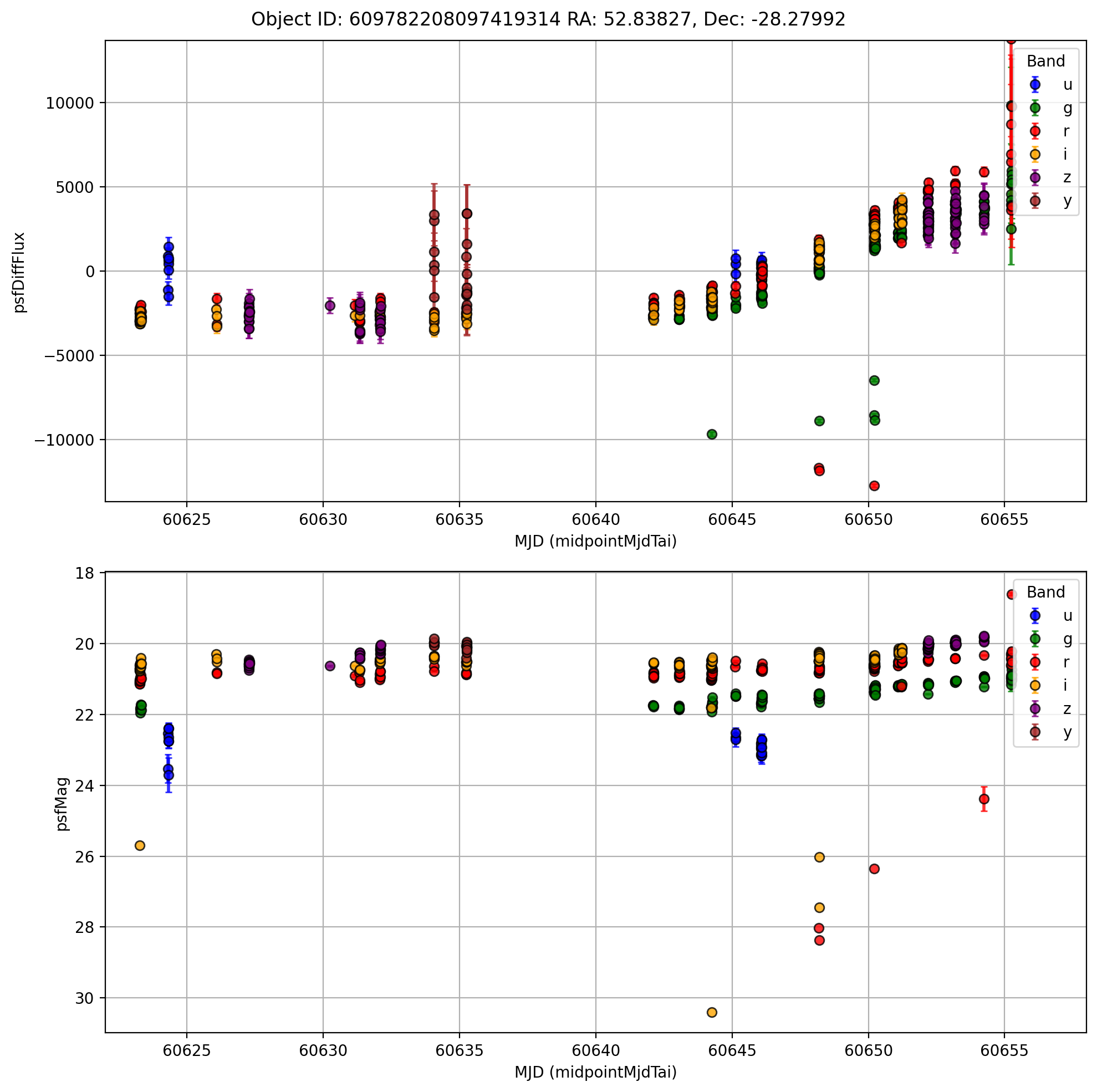

Viewing a Single Lightcurve#
Selecting a single lightcurve is most effectively done via the id_search function, in this case we have a particular “diaObjectId” in mind:
[6]:
objectid = 609782208097419314
single_id = object_collection.id_search(values={"diaObjectId": objectid}).compute()
single_id
Searching for diaObjectId=609782208097419314
[6]:
| dec | diaObjectId | nDiaSources | ra | radecMjdTai | tract | diaObjectForcedSource | diaSource | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2528690302717534293 | -28.279918 | 609782208097419314 | 371 | 52.838269 | 60655.249976 | 4848 |
|
|
[7]:
from matplotlib.patches import Patch
import matplotlib.pyplot as plt
import numpy as np
first_lc = single_id.diaObjectForcedSource.iloc[0]
# Compute symmetric y-limits around 0 using 95% range
flux = first_lc["psfDiffFlux"].dropna()
limit = np.percentile(np.abs(flux), 97.5) + 100
y_min, y_max = -limit, limit
# Start plot
fig, ax = plt.subplots(2, 1, figsize=(10, 10), dpi=200)
# Define band → color mapping
band_colors = {"u": "blue", "g": "green", "r": "red", "i": "orange", "z": "purple", "y": "brown"}
# Plot each band with its color
for band, color in band_colors.items():
band_data = first_lc[first_lc["band"] == band]
if band_data.empty:
continue
ax[0].errorbar(
band_data["midpointMjdTai"],
band_data["psfDiffFlux"],
yerr=band_data["psfDiffFluxErr"],
fmt="o",
color=color,
ecolor=color,
elinewidth=2,
capsize=2,
alpha=0.8,
markeredgecolor="k",
label=band,
)
ax[1].errorbar(
band_data["midpointMjdTai"],
band_data["psfMag"],
yerr=band_data["psfMagErr"],
fmt="o",
color=color,
ecolor=color,
elinewidth=2,
capsize=2,
alpha=0.8,
markeredgecolor="k",
label=band,
)
fig.suptitle(
f'Object ID: {single_id["diaObjectId"].values[0]} RA: {single_id["ra"].values[0]:.5f}, Dec: {single_id["dec"].values[0]:.5f}'
)
ax[0].invert_yaxis()
ax[0].set_xlabel("MJD (midpointMjdTai)")
ax[0].set_ylabel("psfDiffFlux")
# ax[0].set_title(f'Object ID: {single_id["diaObjectId"].values[0]} RA: {single_id["ra"].values[0]:.5f}, Dec: {single_id["dec"].values[0]:.5f}', fontsize=12)
ax[0].set_ylim(y_min, y_max)
ax[0].set_xlim(60622, 60658)
ax[0].grid(True)
ax[0].legend(title="Band", loc="best")
ax[1].invert_yaxis()
ax[1].set_xlabel("MJD (midpointMjdTai)")
ax[1].set_ylabel("psfMag")
# ax[1].set_title(f'Object ID: {single_id["diaObjectId"].values[0]} RA: {single_id["ra"].values[0]:.5f}, Dec: {single_id["dec"].values[0]:.5f}', fontsize=12)
# ax[1].set_ylim(y_min, y_max)
ax[1].set_xlim(60622, 60658)
ax[1].grid(True)
ax[1].legend(title="Band", loc="best")
plt.tight_layout()
Common Filtering Operations#
Filtering by Number of Sources#
Provided the Source table(s) haven’t been modified by any filtering operations, the “nDiaSources” column is directly provided and allows for easy filtering based on lightcurve length. Note that “nDiaSources” is just a static column that maps to the unmodified lengths of DiaSources, once the number of DiaSources is modified then the value in this column will be out of date.
[8]:
oc_long_lcs = object_collection.query("nDiaSources > 10")
oc_long_lcs.head(5)
[8]:
| dec | diaObjectId | nDiaSources | ra | radecMjdTai | tract | diaObjectForcedSource | diaSource | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2528607275717728666 | -28.583791 | 609788049252941847 | 12 | 53.489935 | 60651.220877 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528607345986705737 | -28.559039 | 609788049252941850 | 12 | 53.512649 | 60651.220877 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528608083060939470 | -28.541942 | 609788049252941840 | 13 | 53.556345 | 60652.209345 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528608127600158337 | -28.532665 | 609788049252941831 | 13 | 53.574546 | 60652.209345 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528608365089811280 | -28.505685 | 609788736447709250 | 11 | 53.586313 | 60651.101656 | 4849 |
|
|
Filtering by Photometric Band#
Another common operation is to filter by band, which can done similarly to above, but using sub-column queries:
[9]:
oc_long_lcs_g = oc_long_lcs.query("diaObjectForcedSource.band == 'g'")
oc_long_lcs_g.head(5)
[9]:
| dec | diaObjectId | nDiaSources | ra | radecMjdTai | tract | diaObjectForcedSource | diaSource | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2528607275717728666 | -28.583791 | 609788049252941847 | 12 | 53.489935 | 60651.220877 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528607345986705737 | -28.559039 | 609788049252941850 | 12 | 53.512649 | 60651.220877 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528608083060939470 | -28.541942 | 609788049252941840 | 13 | 53.556345 | 60652.209345 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528608127600158337 | -28.532665 | 609788049252941831 | 13 | 53.574546 | 60652.209345 | 4849 | None |
|
||||||||||||||||||||||||||||||
| 2528608365089811280 | -28.505685 | 609788736447709250 | 11 | 53.586313 | 60651.101656 | 4849 |
|
|
Note: Filtering operations on “diaObjectForcedSource” are not propagated to “diaSource”. Any filtering operations on “diaSource” should be applied in addition to any operations done on “diaObjectForcedSource”.
Filtering Empty Lightcurves#
Sometimes, filters on lightcurves may throw out all observations for certain objects, leading to empty lightcurves as seen for one of the objects above. In this case, we can filter objects with empty lightcurves using dropna:
[10]:
oc_long_lcs_g = oc_long_lcs_g.map_partitions(lambda df: df.dropna(subset=["diaObjectForcedSource"]))
oc_long_lcs_g.head(5)
[10]:
| dec | diaObjectId | nDiaSources | ra | radecMjdTai | tract | diaObjectForcedSource | diaSource | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2528607275717728666 | -28.583791 | 609788049252941847 | 12 | 53.489935 | 60651.220877 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528607345986705737 | -28.559039 | 609788049252941850 | 12 | 53.512649 | 60651.220877 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528608083060939470 | -28.541942 | 609788049252941840 | 13 | 53.556345 | 60652.209345 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528608365089811280 | -28.505685 | 609788736447709250 | 11 | 53.586313 | 60651.101656 | 4849 |
|
|
||||||||||||||||||||||||||||||
| 2528608386523759343 | -28.494832 | 609788736447709234 | 19 | 53.584151 | 60651.101656 | 4849 |
|
|
Calculating Basic Statistics#
While Rubin DP1 data has many statistics pre-computed in object table column, custom computation of statistics remains broadly useful.
Simple aggregrations can be applied via the map_rows function, where below we define a very simple mean magnitude function and pass it along to each row, selecting the “psfMag” sub-column of “diaObjectForcedSource” to compute the mean of for each object.
[11]:
import numpy as np
def mean_mag(row):
return {"mean_psfMag": np.mean(row["diaObjectForcedSource.psfMag"])}
# meta defines the expected structure of the result
# append_columns adds the result as a column to the original catalog
oc_mean_mags_g = oc_long_lcs_g.map_rows(
mean_mag, columns=["diaObjectForcedSource.psfMag"], meta={"mean_psfMag": np.float64}, append_columns=True
)
oc_mean_mags_g.head(10)[["mean_psfMag"]]
[11]:
| mean_psfMag | |
|---|---|
| _healpix_29 | |
| 2528607275717728666 | 19.411814 |
| 2528607345986705737 | 19.042889 |
| 2528608083060939470 | 17.257166 |
| 2528608365089811280 | 17.539051 |
| 2528608386523759343 | 19.579895 |
| 2528611470051636305 | 19.204950 |
| 2528611708541527859 | 19.087742 |
| 2528611724254005370 | 18.638960 |
| 2528652384125757089 | 17.412634 |
| 2528653248294272515 | 18.371521 |
10 rows × 1 columns
In this example, we needed to define the dask “meta”, see here for a more dedicated discussion on meta.
About#
Author(s): Doug Branton
Last updated on: 20 Jan 2026
If you use lsdb for published research, please cite following instructions.
